TJ-680 Installation Template

Convert Click to Convert (beta)
(5 reviews) Write a Review

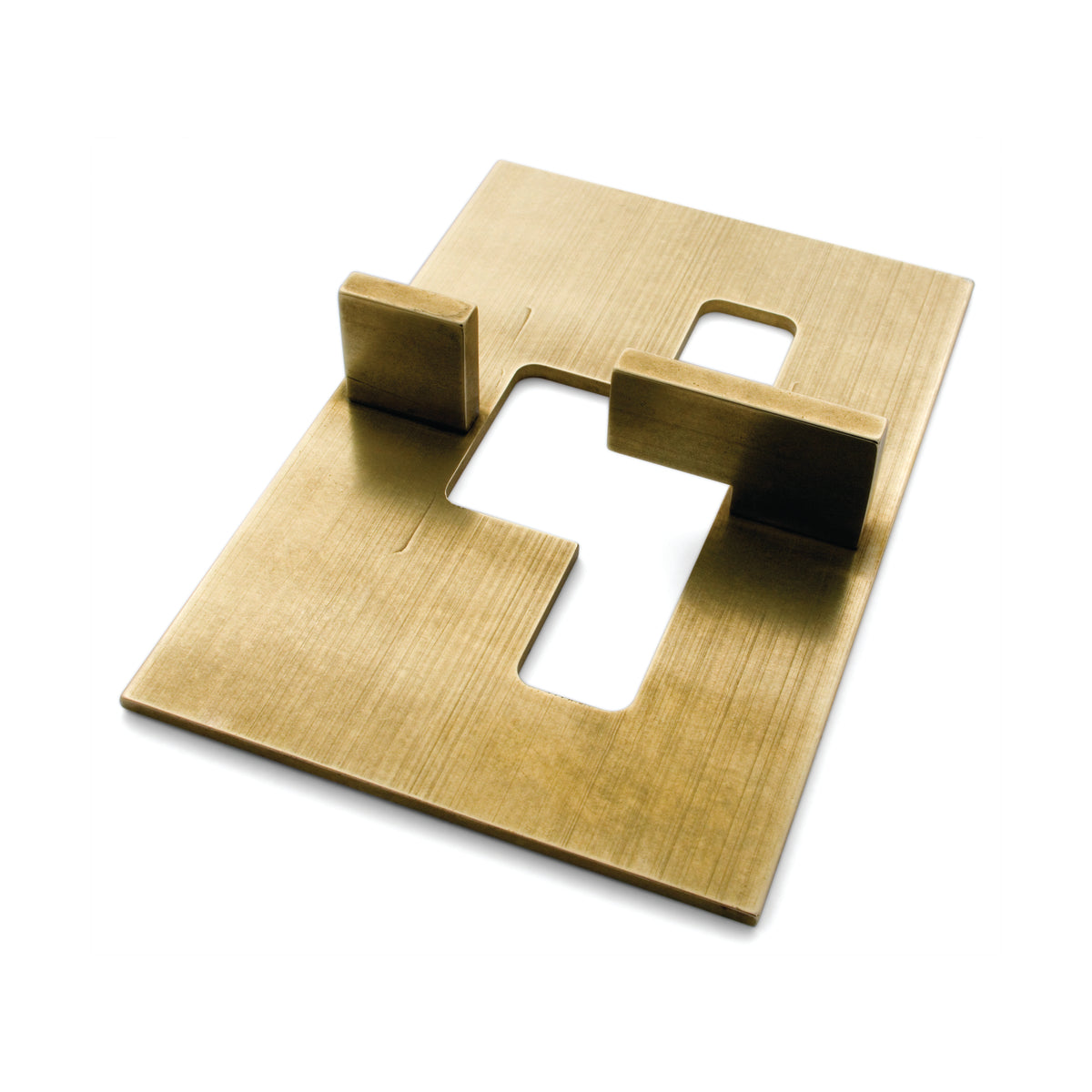

Routing templates, milled from solid brass, ensure quick and precise placement of Brusso products. Compatible with HD-680. Installation instructions are available.

A note regarding revision:  The TJ-680 design has been updated.  If you purchasaed your product after 8/1/13 follow the link below for the Rev 1 instructions.  For the Rev 0 instructions, click here.  For an explanation of the revision change from the Rev 0 to Rev 1 design click here.

View Dimensions | View Installation Instructions
$ 42.24 per PKG

5 Reviews

  • 4

    Posted by Sid Yanez on May 14th 2020

    Recommend etching vertical lines highlighted in red ink to assist centering template. Lines should run down the sides of the routing guide as well to make centering easier.

  • 5

    Posted by Tim Sutherland on Jul 23rd 2019

    Fit - finish, over all quality of both materials machining and finishing are top notch. I was making something special, and these hinges allowed me to maintain that special quality throughout the whe project.

  • 3
    Hinge appearance

    Posted by Unknown on May 27th 2017

    I used the template as instructed on scrap material. I didn't like how much the hinges protruded out the back of the box. I ended up using only the plate without the 1/4" spacer bars. I drilled and countersunk two screw holes in the plate to attach the plate to two blocks which were in turn clamped to the box bottom and top. This allowed the hinges to protrude out the back of the box 1/8", which is much more pleasing appearance and allows good function. The template plate provided perfect fit for the hinge.

  • 5
    Best Ttemplate I have ever used!!!!!

    Posted by Ed Rizzardi on Oct 2nd 2016

    This is the best jig template I have ever used> Extremely precision and easy to set up and use.

  • 5
    better than a plastic jig

    Posted by Unknown on Apr 4th 2016

    Recently installed three sets of hinges on jewelry boxes. Glad I got this to install instead of making my own jig. They are pricey, but may get a second one so I can line both sides up at once. That seemed to be a problem. Only complaint is there are no center line markings so that you can line up with the center of box sides. Made my own marks with a sharpie for next time.
